A solution to connect DVD-Players and Game consoles to the Navigation Screen

[Bog]

Originally Posted by jupdio

Hi Bog,

you're right, the reverse lights come on if the diode is missing.
But the most importand thing is the high power that will flow through the new circuit when the reverse lights come on (approx. 3,5 Ampere!)
That's what i mean to prevent from damage.

Ahhh yes, Schemtics should now work

I assume you mean to protect the purple wire circuit, as the brown would normaly receive the full power from the reversing lights anyway.

[jupdio]

Yes, you're right.
Sometimes it's not easy for me to describe something, as good as i would do in german. But I hope, all of you understand my english...

[Bog]

My DPDT switch is doing the same job as your diodes - isolating one circuit from the other.

[jangel]

must you have the rear view cam fitted . or can you just use nav unit

[-=Stella Artois=-]

Originally Posted by jangel

must you have the rear view cam fitted . or can you just use nav unit

I would be interested to hear that, and how, as I don't have a camera, just the standard Honda fit Sat Nav

[Bog]

Originally Posted by -=Stella Artois=-

I would be interested to hear that, and how, as I don't have a camera, just the standard Honda fit Sat Nav

Yes you can do it, but you have to make you own cable to connect directly to the pins on the back og the Navigation Unit. Honda only supply the plug/cable as part of the reversing camera kit, which is quite expensive!

Have a look here for more info.

[Exfordiano]

Originally Posted by Bog

My DPDT switch is doing the same job as your diodes - isolating one circuit from the other.

Bog, can you explain what is a DPDT switch and how would you install it?

Jupdio, is it tough to take away the navigation unit from the glove compartment and do all the connections?

[Bog]

Exfordiano,

Have a lool at my 'How to' here It will answer both of your questions!

[pcr]

I'm stuggling to find a source for the green 7-pin connector, anyone know what type it is ?. Thanks.

[poejay]

I called Honda today and you can only source with the camera kit £388.64 inc VAT!!! I then emailled Alpine support who say that its a Honda connector and not theirs... The only way to get one is for someone to write their precious car off and then get it from a scrap yard!

I m first in the queue....

[Bog]

Originally Posted by pcr

I'm stuggling to find a source for the green 7-pin connector, anyone know what type it is ?. Thanks.

Look at the this thread from the USA ...

http://www.tsxclub.com/forums/showthread.php?t=17965

The Acura TSX has the same Navigation unit as the Civic and this guy uses a 100KK Molex connector.

I've googled but can't find a stockist in the UK.

[pcr]

That will do for me, thanks a lot Bog.

[jupdio]

Here's my circuit for a Video Switch:

Operating modes:

Power On State: normal Screen Display
Press Button S1 first time: Video Input 1 is selected
Press Button S1 again: Video Input 2 is selected
Press Button S1 again: Camera is selected
Press Button S1 again: restart from beginning (normal Screen and so on...)

The Rear-Camera always have the highest priority. So when you go into reverse the camera turns on (Ok, that's nothing new but important for developing this circuit)


[Bog]

Have you tried it Jupdio

[maci]

hey good job when it works. one suggestion. first try to wire in the radio source selector from the steering wheel or the cancel button to change between the video source

A luxory version was. Create more circuits for audio input. My wish is to connect an ipod video via navi and controll them with the navi wheel an the steering wheel buttons. so you had video on nav screen, mp3 and photos.

[pcr]

Nice one Jupido.
Have you guys given any thought about what it will take to get the source video to be fully displayed without the bottom lines missing ? I assume the missing lines are due to the input lines needing to match the display, and there is no video processing. It needs thinking about when choosing an RV camera.

[jupdio]

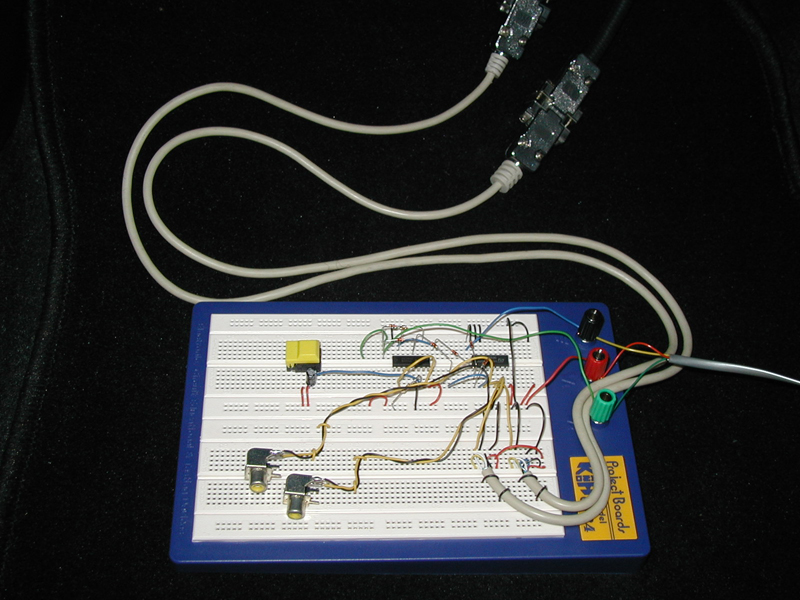

The circuit works very good! Here's a picture from my Developement Board installed in my car.

Next step is to add the sound switch circuit. This Job will do an additionally CD4052 as Audio Input selector.

When everything works properly i will make a first PCB...

[ayasystems]

I love you jupdio!!

This is simply fantastic!

Do you speak spanish? I'm developing a circuit to automatic mirror close / open.

Best regards

[jupdio]

Sorry for my late reply but i was on holidays

Hi ayasystems, sorry i don't speak spanish. My native language is German and i only have some english knowledge.

I'll make the next improvements (like the Audio Switch circuit) the next days.

Speak to you soon...

[pcr]

Can anyone save me from getting a headache and help me understand the following ?.

Prior to selecting a rearview camera, I fed the satnav with a standard
TV PAL-I interlaced composite signal and also an NTSC signal.

The display for the PAL signal was the correct width but the bottom approx' 15% of the input was not displayed, same as jupdio's photos.

The NTSC signal was fully displayed but with a border all around of approx' 6mm.

Also, I couldn't find any way of controlling the brightness for the RV input, the nornal brightness control does not apply.
