Thumbs up Mugen QuickShift - Fitted - How To!

Dear all

Today I spent just over two hours of my life and almost lost several fingers in order to fit my Mugen QuickShifter. As a fair number of people appear to have purchased these, or are tempted by them, I thought I would produce this guide of how to fit so that you are not baffled by the Japanese instructions! (yes my items have been purchased from official UK dealers)

1. Removal of gear knob: I would advise wrapping this in insulation tape to protect from damage and to also help get a grip of the thing to twist anti-clockwise to release. First quarter turn is very difficult, then it is much easier.



2. Turn gaiter locking bolt anticlockwise until it detaches from the shifter stick.



3. Now to remove the gaiter and surround. (this isn't necessary if you remove the centre console and front console first - but I thought it helped!). Simply lift the storage lid and carefully insert a flathead screwdriver into the gap between the surround and the storage hole (use a towel over the screwdriver to protect from damage) and lift up to release the three clips to remove the surround.





4. Time to remove the centre console. There are four nuts to remove, each with a pop-off cover. Two at the front in the footwell and two behind in the rear passengers' footwell.

Front (also same on driver's side):



Rear (also same on driver's side):



Once these nuts are removed, Carefully hold the console at the furthest front part (by the cigarette lighter) and gently pull the sides outwards, whilst pulling the entire unit upwards and backwards. Expect a small amount of resistance from a few clips at the front.



Following this unplug the connector from underneath the cigarette lighter (and the USB connections if applicable/desired - I did not disconnect these) and carefully lift the console unit over the handbrake and remove. If you leave the USB connectors in then lay the unit on the passenger seat, as below.



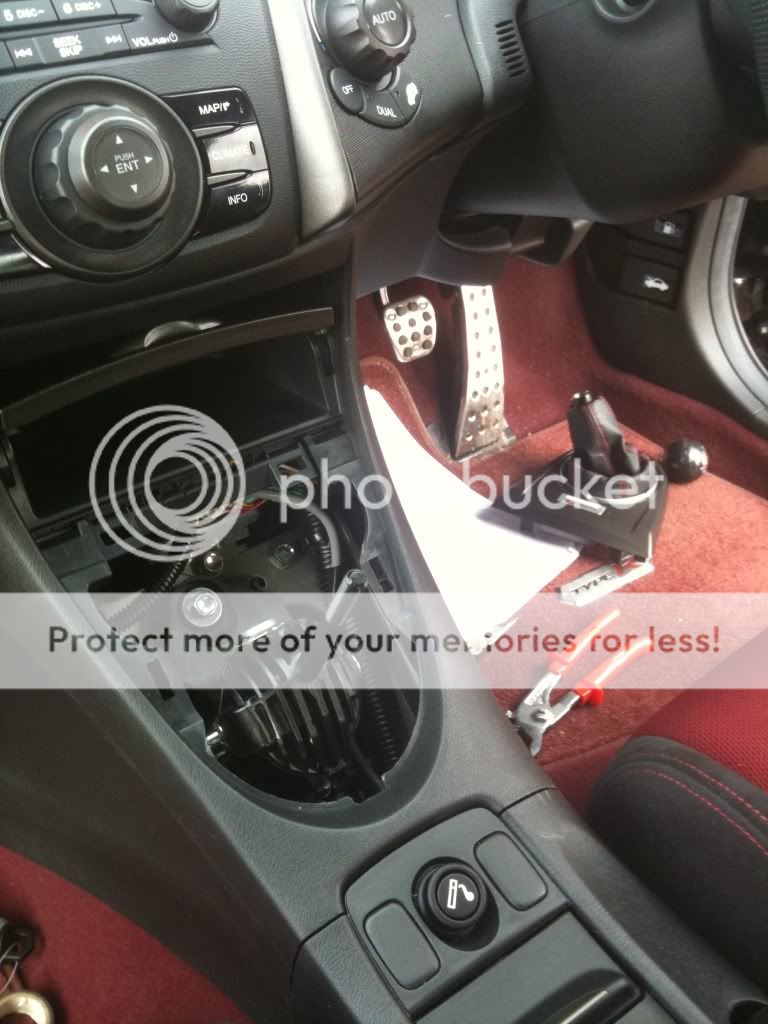

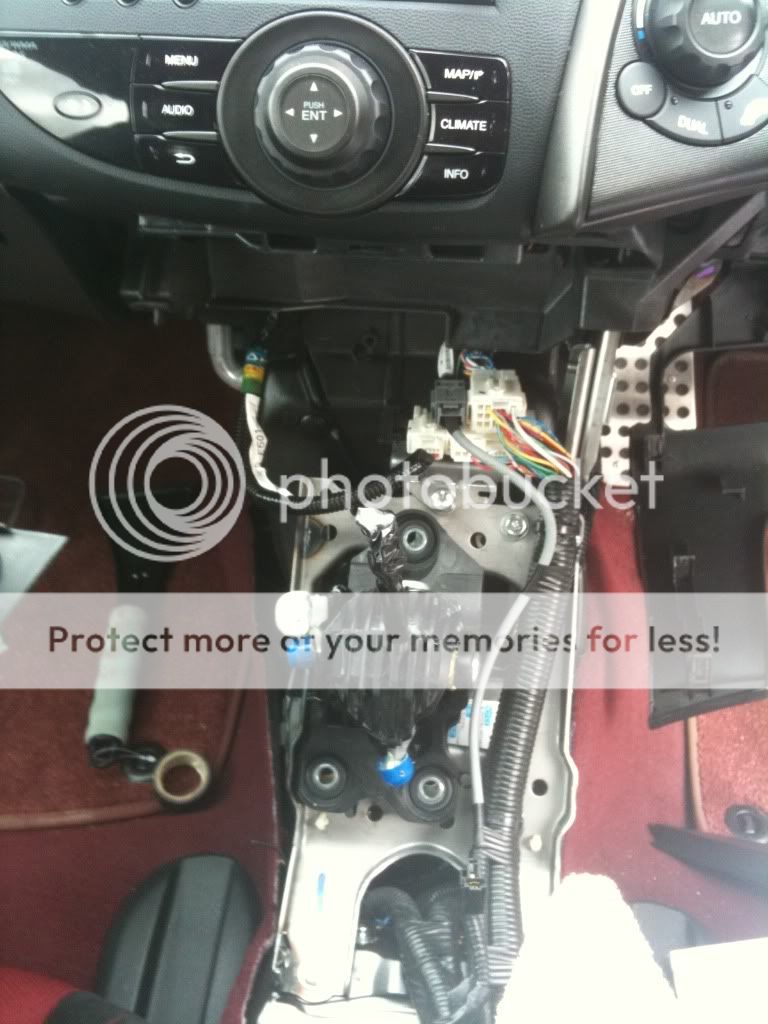

The image below shows the exposed centre without console and the loose connector from the cigarette lighter.



5. At this point I covered the stick of the gear shifter to prevent possible damage to any trim. As shown in the image above.

6. To start removing the Honda gear selector/shifter, a 12mm torque wrench/spanner is needed. I removed the Three nuts before removing the front centre console, however this is not necessary and it's probably easier to wait until the front console section is removed!

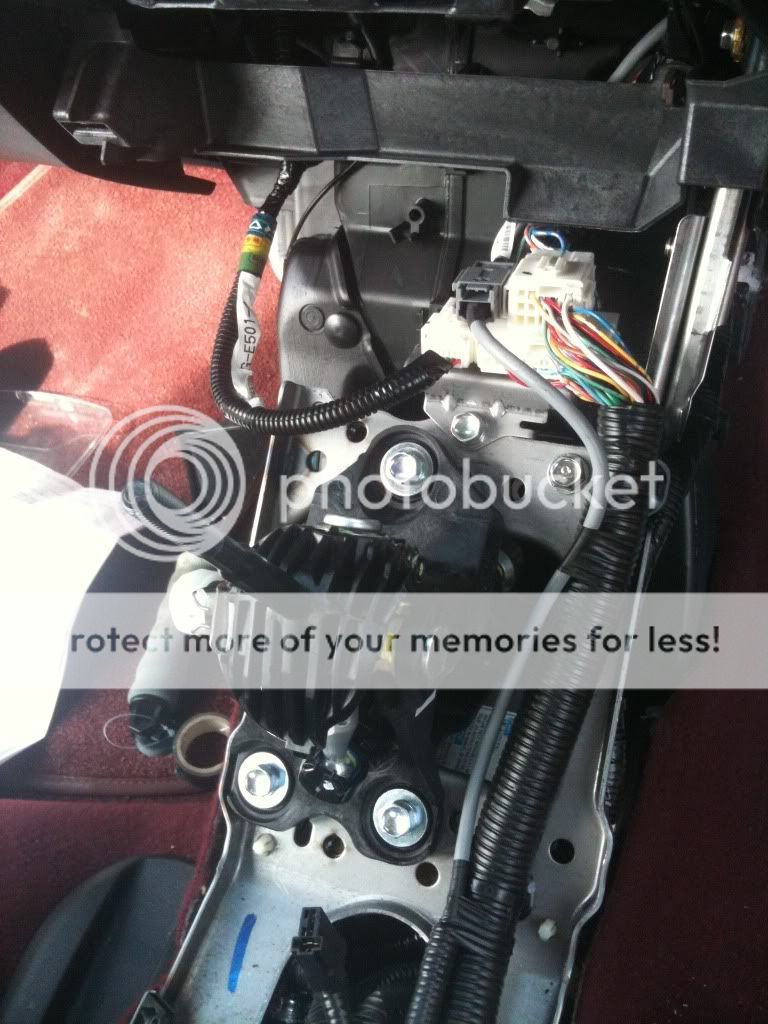

The three large steel nuts are easily identified and removed simply by unbolting, in the usual way.

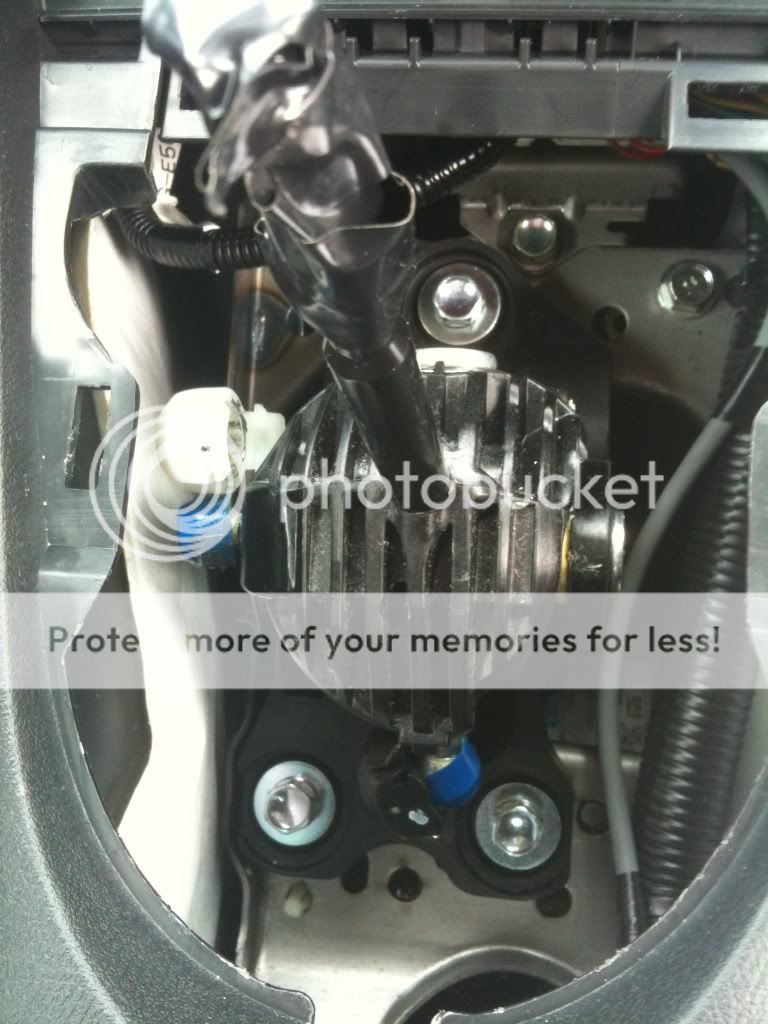

Before:


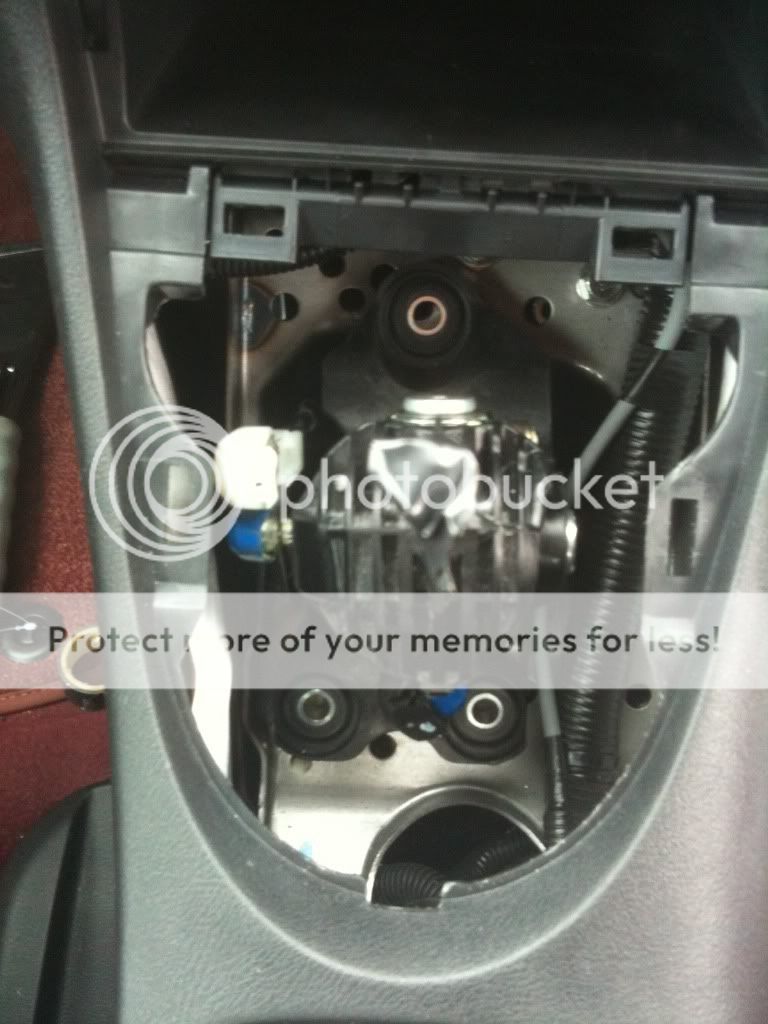

After:


At this stage I also detached the gear levers from the cables. Two ball and socket joints: see the two blue balls which detach by removing the spring clips and simply popping out of the sockets (white on the left and black underneath)

7. Time to remove the front centre console section. (this should probably be done before instruction 6 as access to the bolts is easier.

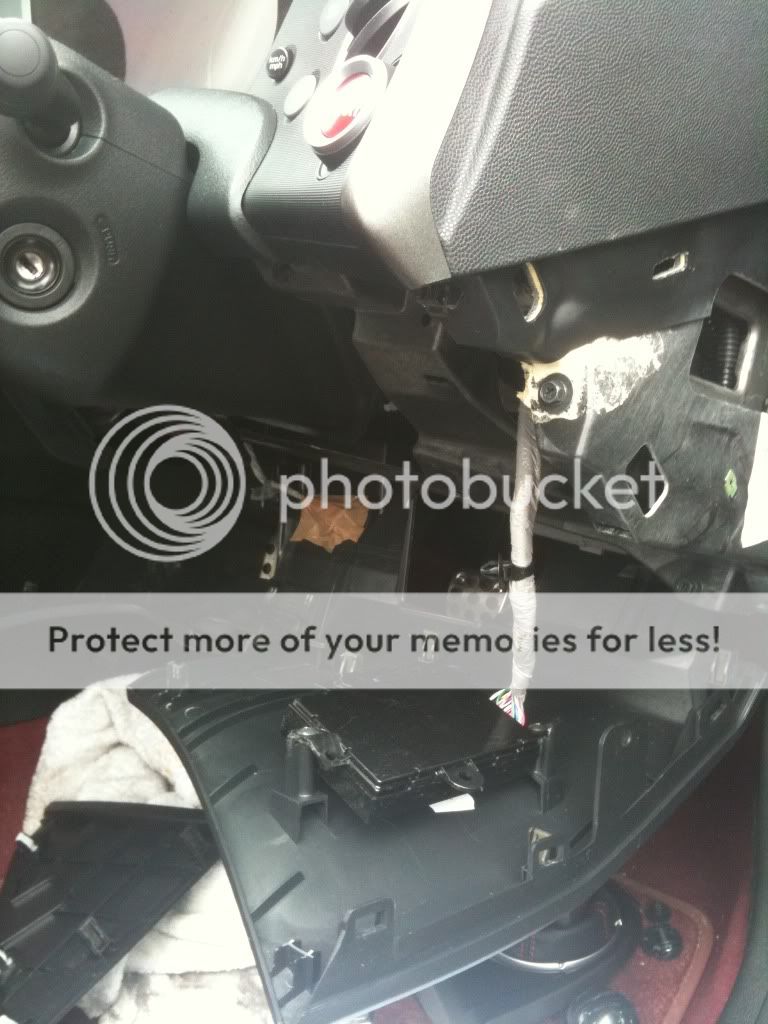

Firstly pull down the driver's footwell cover:



Remove the two pull pins on the passenger's side of the console, in the footwell (just hold the plastic trim at the furthest front part in the footwell and pull the console out towards the door - the two pull pins will pop out).

On the drivers side remove the one pull pin, furthest front (same as on the passenger's side) and then remove two nuts with pop-off covers; both to be found in the plastic trim in the footwell near to the leather padding.

Once all clips are removed, cover the handbrake with a towel to protect it from scratches. Then with moderate force, pull the entire front section of trim towards you and work it up and over the handbrake. I found it easier to release the handbrake first, so ensure you wedge the tires if you're parked on a slant!



8. Ok... here comes the most difficult part, where I almost lost my fingers and obtained a fair number of cuts and scratches!

Disconnecting the gear cables and removing the shifter unit:

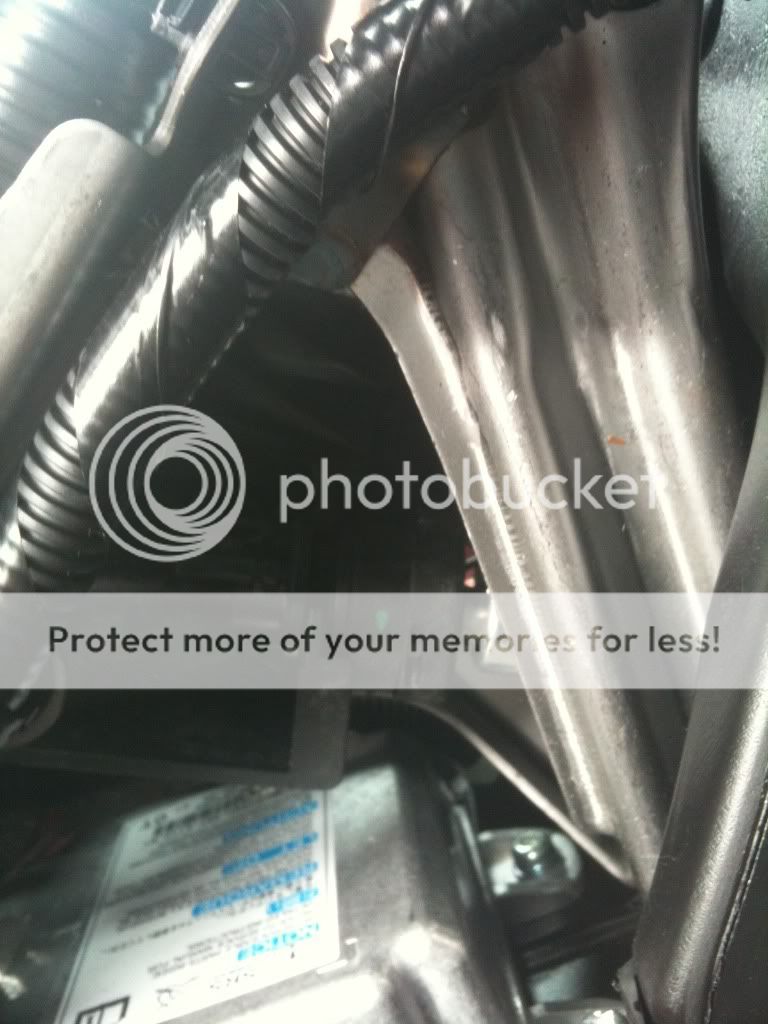

The two silver parts in the photo below, with yellow spots on, are the cable connectors which need to be disconnected from the selector unit.



These are held in place by the black plastic twist-connectors marked with a green spot, seen more clearly in the image below.



There is one of these each side, connected to the socket connectors disconnected in instruction 6. The black plastic part, marked with the green spot, must be twisted anticlockwise (as you face towards the front of the car). These are both sprung loaded so they kept slipping back to their original position... however, with
Perseverance you are able to twist these as far as they will go and whilst they are at 'full twist' you must pull them out of the slot of the shifter unit.

Once these are released, the shifter unit can be removed completely leaving the cables exposed:



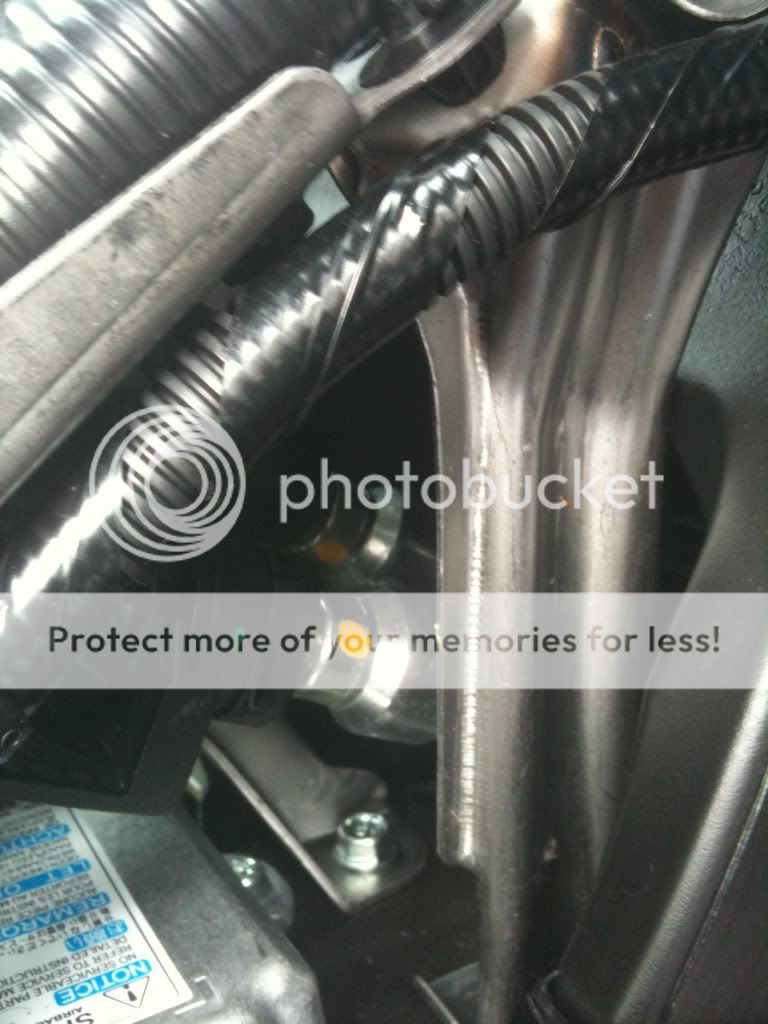

The photo below shows the black twist-lock connectors more clearly



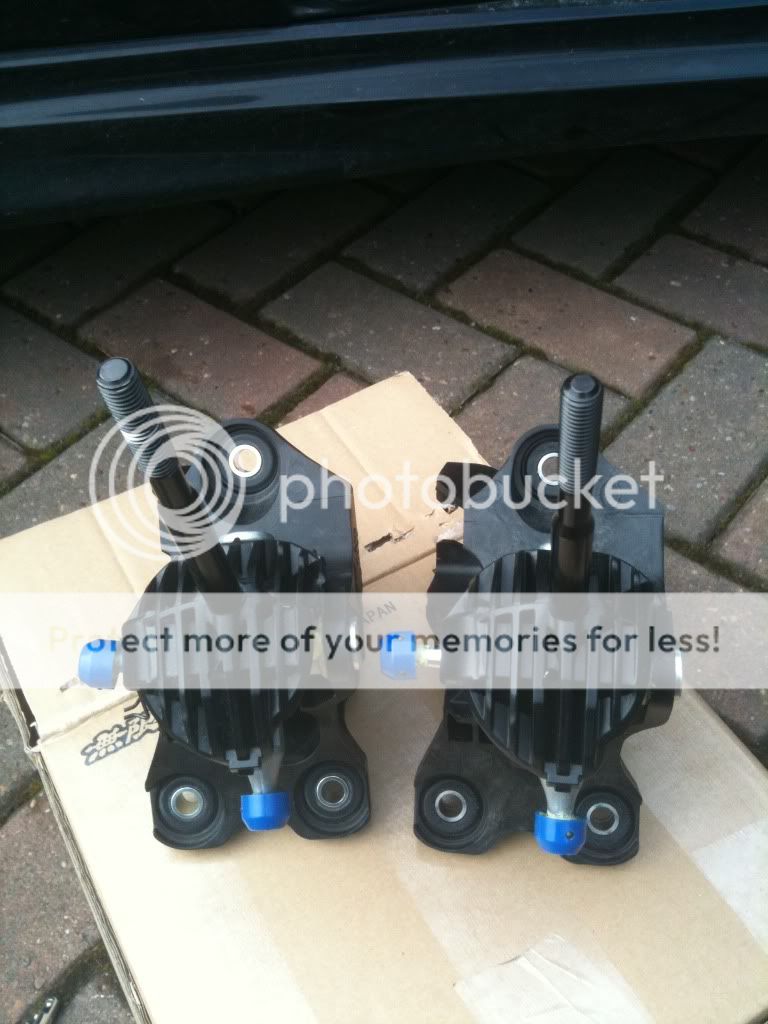

9. Time to fit the Mugen Quickshift. Below are the two units, on the left is the Honda OEM unit and the other is the Mugen. Parts appear to be identical other than the length of the threaded stick.



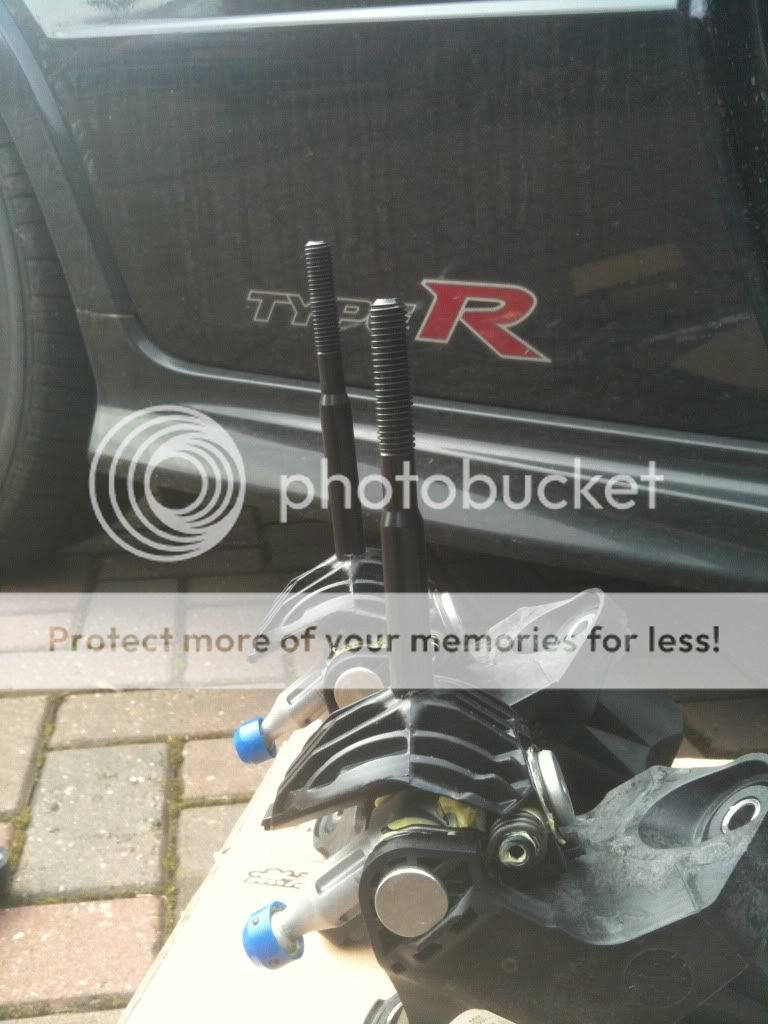

The image below is out of perspective, but it does still demonstrate the difference in length of the sticks, if perhaps a little
exaggerated.



Fitting the Mugen QS is the exact reverse of removal of the OEM part. The cable connectors must be twisted the same to fit into the QS unit.

The image below shows the new QS unit fitted with the ball and socket joints reconnected and the three bolts replaced.



10. Replacement of Centre consoles and interior trim: this is also the exact reverse of the removal instructions.




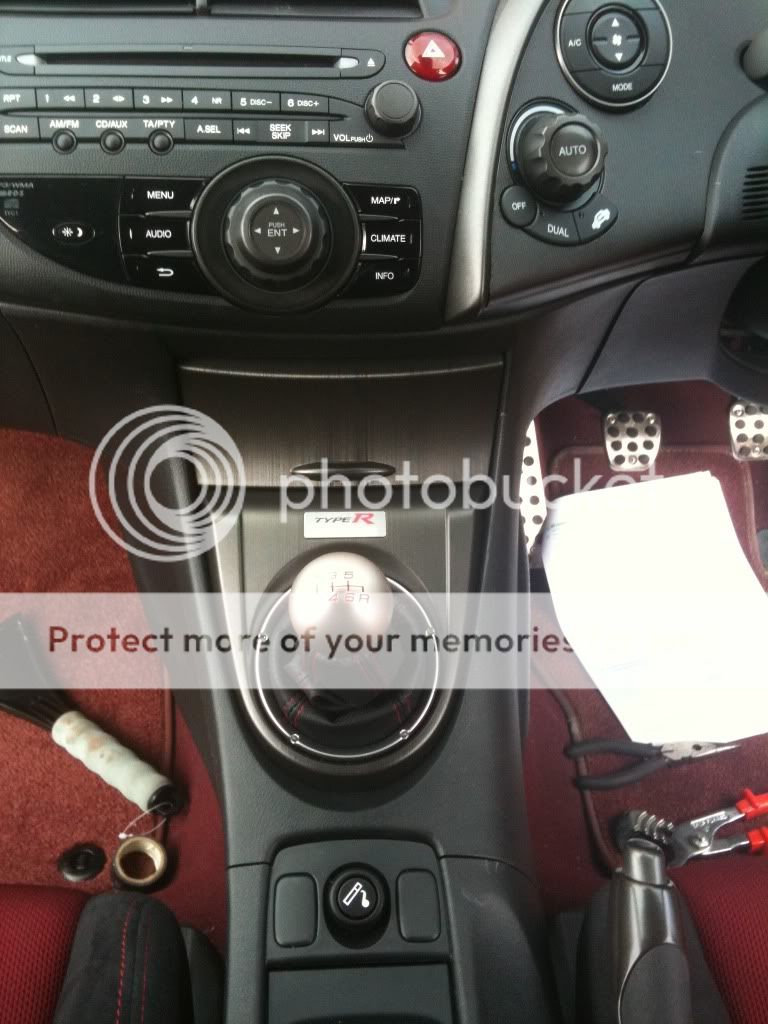

COMPLETED!




I hope this is found to be helpful and not too long winded. It is a straight forward procedure, once you have worked out how to remove individual parts. This took me just over 2 hours, but now I think it would only take about an hour. Sorry if the iPhone photos aren't up to standard.

Good luck to all you fellow Mugenholics!

Ant


N.B - I am yet to drive the car sufficiently to give a review! Also I haven't fitted my Mugen Knob yet as I want to feel the difference!
- Thanks very much to TH3DOCTOR for assisting with instruction for removing the centre console - helped a great deal!
- Mods: please feel free to move this if you feel it would be more appropriate in another section.

Last edited by antmaz; 7th March 2010 at 00:01. Reason: photo resize
antmaz is offline
Sponsored Links
Advertisement

post #2 of 74 (permalink) Old 6th March 2010, 23:20
The White Knight

Josh1987's Avatar

Join Date: 4th May 2009
Location: Pickering ENGLAND
Posts: 1,486
Thanks: 15
Thanked 72 Times in 67 Posts
iTrader: (3)
Send a message via MSN to Josh1987
Picture size sucks
Josh1987 is offline
post #3 of 74 (permalink) Old 6th March 2010, 23:29 Thread Starter
My other woman is my CTR
** Thread starter **

antmaz's Avatar

Car: '59 CTR GT satnav/hft
Join Date: 9th September 2008
Location: Nottingham, UK ENGLAND
Posts: 1,505
Thanks: 42
Thanked 85 Times in 68 Posts
iTrader: (7)
Quote:
Originally Posted by Josh1987 View Post
Picture size sucks
Give me a chance!

I've amended them now... I've never used photobucket before and didnt realise the links to the thumbnails weren't for the full photo!

How is is for your viewing pleasure now??
antmaz is offline

post #4 of 74 (permalink) Old 7th March 2010, 00:27
The Property Man

fat4y's Avatar

Car: 2007 VW Beetle 1.6
Join Date: 6th November 2008
Location: Glasgow HK
Posts: 6,060
Thanks: 25
Thanked 379 Times in 373 Posts
iTrader: (6)
that is quality!!! thanks for sharing..prob the best how to review ive seen

excellent matey
fat4y is offline
post #5 of 74 (permalink) Old 7th March 2010, 01:23
Sold a kidney last week!

TypeRiter's Avatar

Car: '59 Alabaster Silver FN2
Join Date: 27th May 2009
Location: Heathrow, London ENGLAND
Posts: 3,962
Thanks: 319
Thanked 224 Times in 217 Posts
iTrader: (8)
Good job, great write-up!
TypeRiter is offline
post #6 of 74 (permalink) Old 7th March 2010, 01:39
R-2
geekess

R-2's Avatar

Car: 2010 Mugen 200 Type R
Join Date: 1st October 2007
Location: deep in the shires GB
Posts: 3,638
Thanks: 233
Thanked 291 Times in 271 Posts
iTrader: (1)
Send a message via MSN to R-2
Great How To. I think even i could do it from those pics and instructions.

In picture 7 is that a parking ticket stuffed into your side pocket?
R-2 is offline
post #7 of 74 (permalink) Old 7th March 2010, 01:55 Thread Starter
My other woman is my CTR
** Thread starter **

antmaz's Avatar

Car: '59 CTR GT satnav/hft
Join Date: 9th September 2008
Location: Nottingham, UK ENGLAND
Posts: 1,505
Thanks: 42
Thanked 85 Times in 68 Posts
iTrader: (7)
Yup.... it's two actually, but from work so they don't count! 10/10 for observation!
antmaz is offline
post #8 of 74 (permalink) Old 7th March 2010, 13:10
Resident Civinfo Nutter

NeoFlare's Avatar

Car: 2010 1.5 PWP CRZ-GT navi
Join Date: 14th November 2008
Location: Lurgan, Craigavon EUROPEANUNION
Posts: 4,451
Thanks: 78
Thanked 267 Times in 256 Posts
iTrader: (4)
Send a message via MSN to NeoFlare
Great guide! ^__^

Have you tried any driving from installing and what is the actual difference you have felt?
NeoFlare is offline
post #9 of 74 (permalink) Old 7th March 2010, 13:12
Supporter

R555's Avatar

Car: 2007 CTR, Milano Red
Join Date: 17th November 2009
Location: North Yorks ENGLAND
Posts: 5,241
Thanks: 837
Thanked 410 Times in 381 Posts
iTrader: (6)
Excellent Ant - your a brave man ripping apart your CTR!

You'll have to post a review once you've driven it....
R555 is offline
post #10 of 74 (permalink) Old 7th March 2010, 13:13
Resident Civinfo Nutter

NeoFlare's Avatar

Car: 2010 1.5 PWP CRZ-GT navi
Join Date: 14th November 2008
Location: Lurgan, Craigavon EUROPEANUNION
Posts: 4,451
Thanks: 78
Thanked 267 Times in 256 Posts
iTrader: (4)
Send a message via MSN to NeoFlare
Think this will fit in a 1.4
NeoFlare is offline
post #11 of 74 (permalink) Old 7th March 2010, 13:19
aka Colin

pigdog's Avatar

Car: 2008 CTR GT, Black
Join Date: 19th April 2008
Location: Dublin, Ireland ENGLAND
Posts: 10,854
Thanks: 922
Thanked 1,494 Times in 1,388 Posts
iTrader: (15)
great guide mate, looking forward to getting mine on tuesday.
pigdog is offline
post #12 of 74 (permalink) Old 7th March 2010, 18:35
ON A STEEL WOK I FRY

Kimotherapy's Avatar

Car: S2000
Join Date: 23rd May 2009
Location: Ho Chi Minh VN
Posts: 2,460
Thanks: 187
Thanked 302 Times in 277 Posts
iTrader: (2)
jesus, nothing gets past R2 lol.

Good guide mate, not sure its something I would do but if do, I'll definitely refer to this guide.
Kimotherapy is offline
post #13 of 74 (permalink) Old 7th March 2010, 21:27
LOUD NOISES!!!

gadgetman68's Avatar

Car: 60 FN2 M200
Join Date: 5th February 2009
Location: Derbyshire, UK ENGLAND
Posts: 5,369
Thanks: 990
Thanked 765 Times in 624 Posts
iTrader: (6)
Well done Ant, superb how to guide.
gadgetman68 is offline
post #14 of 74 (permalink) Old 8th March 2010, 11:28
Shake & Bake!

CTR_Timmy's Avatar

Car: 02 Lexus IS200 & 73 IMP
Join Date: 3rd July 2009
Location: Horndean, Hampshire ENGLAND
Posts: 1,472
Thanks: 100
Thanked 37 Times in 35 Posts
iTrader: (1)
Send a message via MSN to CTR_Timmy
great write up buddy!
CTR_Timmy is offline
post #15 of 74 (permalink) Old 8th March 2010, 12:17
Supporter

ritchie_perriam's Avatar

Car: 1989 BMW 325i sport
Join Date: 30th November 2007
Location: guildford, surrey ENGLAND
Posts: 702
Thanks: 4
Thanked 40 Times in 18 Posts
iTrader: (1)
just looking at these parts from the photos the only difference is the length of the shaft.

could you not remove the original, cut down the shaft a bit, then buy a die to cut the thread down furthur. would cost £10 instead of whatever mugen charge.

P.S. how much is the short shifter?
ritchie_perriam is offline
post #16 of 74 (permalink) Old 8th March 2010, 13:43
Commercial user

tdi-north's Avatar

Join Date: 3rd May 2008
Location: Warrington GB
Posts: 4,695
Thanks: 216
Thanked 936 Times in 660 Posts
iTrader: (0)
Quote:
Originally Posted by ritchie_perriam View Post
just looking at these parts from the photos the only difference is the length of the shaft.

could you not remove the original, cut down the shaft a bit, then buy a die to cut the thread down furthur. would cost £10 instead of whatever mugen charge.

P.S. how much is the short shifter?


If only it were that simple.
Cams are also different on the bottom where the cables fix to. Thats what gives the shorter throw not length of stick.
tdi-north is offline
post #17 of 74 (permalink) Old 8th March 2010, 14:19 Thread Starter
My other woman is my CTR
** Thread starter **

antmaz's Avatar

Car: '59 CTR GT satnav/hft
Join Date: 9th September 2008
Location: Nottingham, UK ENGLAND
Posts: 1,505
Thanks: 42
Thanked 85 Times in 68 Posts
iTrader: (7)
Quote:
Originally Posted by tdi-north View Post


If only it were that simple.
Cams are also different on the bottom where the cables fix to. Thats what gives the shorter throw not length of stick.
Cheers for that TDi... I was thinking the exact same thing, and consequently a little disgruntled having forked out for a shorter stick!
antmaz is offline
post #18 of 74 (permalink) Old 8th March 2010, 20:34
Supporter

ritchie_perriam's Avatar

Car: 1989 BMW 325i sport
Join Date: 30th November 2007
Location: guildford, surrey ENGLAND
Posts: 702
Thanks: 4
Thanked 40 Times in 18 Posts
iTrader: (1)
ah so it is more than a short stick
ritchie_perriam is offline
post #19 of 74 (permalink) Old 8th March 2010, 20:50
Supporter

Harps's Avatar

Car: 2007 NHB CTR
Join Date: 31st January 2007
Location: Leicester ENGLAND
Posts: 639
Thanks: 38
Thanked 29 Times in 29 Posts
iTrader: (0)
Excellent write up mate, looking forward to your review. I want one but going to save up for flashpro first!
Harps is offline
post #20 of 74 (permalink) Old 14th March 2010, 14:29 Thread Starter
My other woman is my CTR
** Thread starter **

antmaz's Avatar

Car: '59 CTR GT satnav/hft
Join Date: 9th September 2008
Location: Nottingham, UK ENGLAND
Posts: 1,505
Thanks: 42
Thanked 85 Times in 68 Posts
iTrader: (7)
Quote:
Originally Posted by Harps View Post
Excellent write up mate, looking forward to your review. I want one but going to save up for flashpro first!
Cheers!

In case you haven't seen already, my review is on a seperate thread in the Muuuuugen section!
antmaz is offline
Thanks to antmaz from:
Reply

  Civinfo > Civic Type R > Mugen

Tags
mugen quick shifter , mugen short shifter

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Civinfo forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
Your User Name is the name that appears by all your posts on the forum, and so should not be your email address.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



  LinkBacks (?)
LinkBack to this Thread: https://www.civinfo.com/forum/mugen/38065-mugen-quickshift-fitted-how.html
Posted By For Type Date
CivicType-R.co.za • View topic - DIY: Gear Lever/short shifter install This thread Refback 14th June 2013 15:32
Pommeau de vitesse This thread Refback 7th December 2012 18:22
Civic Type-R Owners Club & Forum • View topic - FN2 Mugen Assist Meters This thread Refback 29th May 2012 16:32
www.FnHatch.de • Thema anzeigen - Shortshifter This thread Refback 18th February 2011 17:28
www.FnHatch.de • Thema anzeigen - Shortshifter This thread Refback 18th February 2011 13:17
Untitled document This thread Refback 8th February 2011 11:21
Untitled document This thread Refback 7th February 2011 15:06
Untitled document This thread Refback 2nd February 2011 11:05
Untitled document This thread Refback 4th November 2010 20:45
Untitled document This thread Refback 29th October 2010 13:39
Untitled document This thread Refback 9th October 2010 15:27
Untitled document This thread Refback 1st October 2010 21:09
Untitled document This thread Refback 1st October 2010 08:19
Untitled document This thread Refback 26th September 2010 22:44
Untitled document This thread Refback 12th September 2010 19:27
Untitled document This thread Refback 8th September 2010 09:03
Untitled document This thread Refback 4th September 2010 17:32
Untitled document This thread Refback 2nd September 2010 17:48
Untitled document This thread Refback 2nd September 2010 17:38
PH - Forum Honda - Pommeau de vitesse This thread Refback 3rd August 2010 07:00
Untitled document This thread Refback 21st April 2010 19:12

Similar Threads
Thread Thread Starter Forum Replies Last Post
Mugen accessories for the Honda CR-Z on Mugen Japan site devils_hands Mugen 0 26th February 2010 10:56
Anyone Have this fitted kahmed87 Type-R 9 15th March 2009 21:16
HID Who's fitted HID? S18TypeR Lights (8G) 9 28th December 2008 12:02
Subwoofer Sub and Amp fitted, but.... shah85 Ipods, MP3 Players and ICE (8G) 3 25th May 2008 20:02

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
