Dyno parts tested

Had some time today due to someone not showing up after booking in...... Another reason for having booking fees.

I was able to test one after the other Toda, TDI/Xo and CPL manifolds.
Toda, HKS, Milltek catbacks
Mugen, GruppeM and HKS intakes.

In simple terms:
Manifolds for peak bhp:
1. TDI/Xo
2. Toda
3. CPL

Manifolds at peak torque:
1. Toda
2. CPL
3. TDI/Xo

Exhausts:
1. Toda
2. HKS
3. Milltek
(not lot between HKS and Milltek but Toda gain was significant)

Intakes:
1. Mugen with scoop
2. Mugen and GM (Mugen was behind bumper no scoop kit)
3. HKS race kit

Pretty eye opening really concerning manifolds but design of Toda with short primaries will give better low down torque. TDI/Xo has very long primaries and as seen in past on race engines is ideal for peak power where you are most of the time. CPL is a good compromise.

Exhausts you would expect a 60mm system to give better flow than a 52mm system and that is what we saw.

Intakes the Mugen with the garnish scoop is the one to beat now. No flatspots, very smooth and makes the power. True ram air system and I believe would be the ultimate for anyone chasing big bhp or boosted.

Conclusion is I'm now running Mugen intake with scoop, Toda manifold and catback as the torque is immense compared to other combinations, however I am down on peak bhp compared to if I wa running our own manifold which was originally designed for race cars.

Will be testing again with JDM camshafts soon
tdi-north is offline   Reply With Quote Quick reply to this message
Thank You to tdi-north from 6 Users:
Old 26th May 2010, 21:49   #2 (permalink)

Car: Type R - 2008 - NHB
Join Date: 26th March 2010
Location: Manchester, UK ENGLAND
Posts: 37
Thanks given: 1
Thanked 2 Times in 2 Posts
iTrader: (0)
Fantastic, thanks for sharing.

This kind of information is stuff that interests most CTR owners, but there are very few people like yourself who have the oppertunity to test all the different combos with a proper dyno.

Thanks for sharing.
gaz_0001 is offline   Reply With Quote Quick reply to this message
Old 26th May 2010, 21:55   #3 (permalink)

Nitro1018's Avatar

Car: 2009 CTR, Grey
Join Date: 8th May 2009
Location: Switzerland CH
Posts: 578
Thanks given: 13
Thanked 18 Times in 18 Posts
iTrader: (2)
Send a message via MSN to Nitro1018
For the intakes, do you try with CAI like Injen one?
Nitro1018 is offline   Reply With Quote Quick reply to this message
Old 26th May 2010, 21:56   #4 (permalink)
** Thread starter **

tdi-north's Avatar

Join Date: 3rd May 2008
Location: Warrington GB
Posts: 4,695
Thanks given: 216
Thanked 936 Times in 660 Posts
iTrader: (0)
Think people also don't want to know the answers sometimes.
Thing is new parts become available as the cars get older and not many have chance to test as you say.

Thing is with the FN2 it's immediatly compromised by design and space. Ultimate would be much longer manifold, less bends in the exhaust and ultimately single exit but that's not what we can have in most cases.
Don't honestly think there is much more tone gained with different manifolds or exhausts. The real power will now come from better camshafts and dumping the oil pump system but looking back we already knew that.
tdi-north is offline   Reply With Quote Quick reply to this message
Old 26th May 2010, 22:00   #5 (permalink)
** Thread starter **

tdi-north's Avatar

Join Date: 3rd May 2008
Location: Warrington GB
Posts: 4,695
Thanks given: 216
Thanked 936 Times in 660 Posts
iTrader: (0)
Nitro- no only what I have detailed in first post. I don't sell Injen as it's not a good kit. Anything that involves bending chassis or cutting holes in arch liners is nota good solution. I fed back information to Injen several times and they didn't listen. The kit is compromised and they had the opertunity to make a very good kit. Maybe in the future though.
New parts are released thy are better than previous ones so time will tell
tdi-north is offline   Reply With Quote Quick reply to this message
Old 26th May 2010, 22:01   #6 (permalink)
COTM Feb 2012

Guitaralmond's Avatar


Car: Aston V12 Vantage S
Join Date: 9th January 2008
Location: Nantwich GB
Posts: 3,995
Thanks given: 413
Thanked 319 Times in 282 Posts
iTrader: (11)
Awesome!! Thanks alot Paul got any toda goin cheap??
Guitaralmond is offline   Reply With Quote Quick reply to this message
Old 26th May 2010, 22:02   #7 (permalink)
** Thread starter **

tdi-north's Avatar

Join Date: 3rd May 2008
Location: Warrington GB
Posts: 4,695
Thanks given: 216
Thanked 936 Times in 660 Posts
iTrader: (0)
Hahaha. No.
tdi-north is offline   Reply With Quote Quick reply to this message
Old 26th May 2010, 22:05   #8 (permalink)
The White Knight

Josh1987's Avatar


Join Date: 4th May 2009
Location: Pickering ENGLAND
Posts: 1,486
Thanks given: 15
Thanked 72 Times in 67 Posts
iTrader: (3)
Send a message via MSN to Josh1987
for Price i think Milltek is good i got mine for 300 cant fall off really yes mt GM was 600 still not a bad price to nowadays all i needs is a god damm tune lol lol just need to decide on a Manifold
Josh1987 is offline   Reply With Quote Quick reply to this message
Old 26th May 2010, 22:50   #9 (permalink)
BRM
Supporter

BRM's Avatar


Join Date: 2nd October 2007
Location: Portugal PT
Posts: 2,937
Thanks given: 33
Thanked 237 Times in 190 Posts
iTrader: (7)
Well done Paul.. Great info! Thanks

Any Dyno Plots comparing the TODA Manifold with the TDI one??

Pleeeeeeaaase....
BRM is offline   Reply With Quote Quick reply to this message
Old 26th May 2010, 22:52   #10 (permalink)
Supporter

Davek's Avatar


Car: 2007 CTR GT in Milano
Join Date: 15th March 2009
Location: Kent, UK ENGLAND
Posts: 1,032
Thanks given: 33
Thanked 102 Times in 96 Posts
iTrader: (11)
Good info...like seeing that the TDI manifold that I got is best for peak bhp!

I dont get how the Mugen airbox with scoop got better results that the GM, surely they are the same thing and the GM has a larger intake and is getting a better flow of air straight into it.

Not saying the results are wrong or anything by the way, as you have shown the dynos before but unless you ask you can't learn.
Davek is offline   Reply With Quote Quick reply to this message
Old 26th May 2010, 23:03   #11 (permalink)
** Thread starter **

tdi-north's Avatar

Join Date: 3rd May 2008
Location: Warrington GB
Posts: 4,695
Thanks given: 216
Thanked 936 Times in 660 Posts
iTrader: (0)
Will post up final plots shortly. Main is the TDI vs Toda manifolds and you will clearly see the differences what longer primarys make.

Regarding the intakes the Mugen just allows a higher volume of air compared to the GM when the scoop is fitted
tdi-north is offline   Reply With Quote Quick reply to this message
Old 26th May 2010, 23:30   #12 (permalink)
Aye Aye....

DPG87's Avatar


Car: 2009 CTR, Milano
Join Date: 1st July 2009
Location: Glasgow SCOTLAND
Posts: 7,098
Thanks given: 740
Thanked 1,210 Times in 1,056 Posts
iTrader: (10)
Great post Paul thanks for even more great info!
DPG87 is offline   Reply With Quote Quick reply to this message
Old 27th May 2010, 00:21   #13 (permalink)
The Property Man

fat4y's Avatar


Car: 2007 VW Beetle 1.6
Join Date: 7th November 2008
Location: Glasgow HK
Posts: 6,060
Thanks given: 25
Thanked 379 Times in 373 Posts
iTrader: (6)
lovely..thanks for this info paul..excellent work
fat4y is offline   Reply With Quote Quick reply to this message
Old 27th May 2010, 00:33   #14 (permalink)
ON A STEEL WOK I FRY

Kimotherapy's Avatar


Car: S2000
Join Date: 23rd May 2009
Location: Ho Chi Minh VN
Posts: 2,460
Thanks given: 187
Thanked 302 Times in 277 Posts
iTrader: (2)
Very interesting when laid out like that. Thanks Paul
Kimotherapy is offline   Reply With Quote Quick reply to this message
Old 27th May 2010, 19:36   #15 (permalink)

Smurf's Avatar

Join Date: 8th August 2009
Location: Ulster NORTHIRELAND
Posts: 91
Thanks given: 0
Thanked 3 Times in 2 Posts
iTrader: (0)
I would like to see the standard air box with k&n panel filter and driven crazy scoop to see what types of gains would be made. It is mint to act like a ram effect as well.

I really want to get my car over to use and get it tuned but I would like to have a few bits on it first before gettin it tuned. Think manifold would be the best purchase for the best gains but dam that toda is expensive.

If my car was standard and tuned would I feel much of an improvement. The midrange seems pretty gutless in my car. Also throttle response is pants. My 1.4 ek civic had 10x better throttle response. Would this improve with you tuning it.
Smurf is offline   Reply With Quote Quick reply to this message
Old 27th May 2010, 21:27   #16 (permalink)
** Thread starter **

tdi-north's Avatar

Join Date: 3rd May 2008
Location: Warrington GB
Posts: 4,695
Thanks given: 216
Thanked 936 Times in 660 Posts
iTrader: (0)
Mapping a standard car has big benefits so I'd say get it done.

Using the OEM system with the driven scoop isn't really acheiving much gains wise as you still have the very long complex intake system and there isn't any way to gather anymore cold air than the oem scoop already gets.
Get the Mugen scoop and keep stock intake I recon would be a better solution.
tdi-north is offline   Reply With Quote Quick reply to this message
Old 27th May 2010, 21:42   #17 (permalink)

Smurf's Avatar

Join Date: 8th August 2009
Location: Ulster NORTHIRELAND
Posts: 91
Thanks given: 0
Thanked 3 Times in 2 Posts
iTrader: (0)
Have you got any graphs of a standard car just mapped.

Do you have the flashpro in stock. Or would I have to buy it and bring it with me if I was comin over to get mapped.
Smurf is offline   Reply With Quote Quick reply to this message
Old 27th May 2010, 21:55   #18 (permalink)
** Thread starter **

tdi-north's Avatar

Join Date: 3rd May 2008
Location: Warrington GB
Posts: 4,695
Thanks given: 216
Thanked 936 Times in 660 Posts
iTrader: (0)
Got loads with just an intake and flashpro but not on it's own. They are in stock so you could just load the groupN map in the meantime until you are ready to get it tuned.
tdi-north is offline   Reply With Quote Quick reply to this message
Old 28th May 2010, 00:38   #19 (permalink)

nunoctr's Avatar

Join Date: 26th May 2008
Location: portugal - Benfica PT
Posts: 2,417
Thanks given: 115
Thanked 395 Times in 299 Posts
iTrader: (0)
Quote:
Originally Posted by tdi-north View Post
using the OEM system with the driven scoop isn't really acheiving much gains wise as you still have the very long complex intake system and there isn't any way to gather anymore cold air than the oem scoop already gets

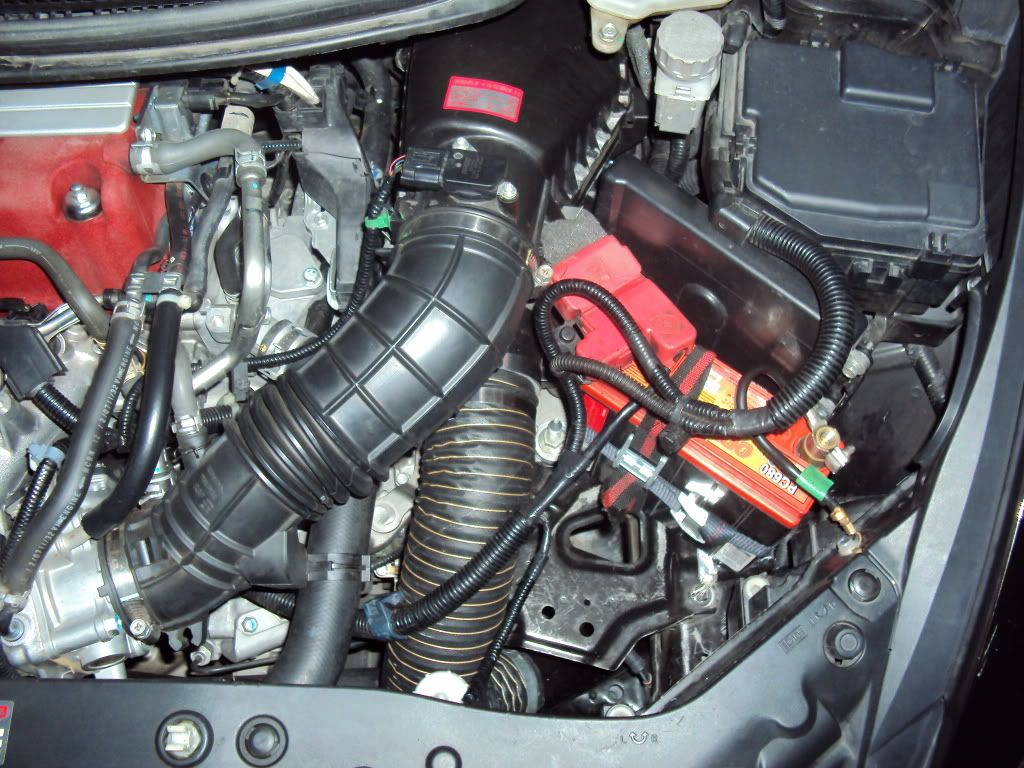

sorry but this is not complex and gets much more(fresh) air


lex:

nunoctr is offline   Reply With Quote Quick reply to this message
Old 28th May 2010, 01:31   #20 (permalink)
BRM
Supporter

BRM's Avatar


Join Date: 2nd October 2007
Location: Portugal PT
Posts: 2,937
Thanks given: 33
Thanked 237 Times in 190 Posts
iTrader: (7)
Quote:
Originally Posted by nunoctr View Post

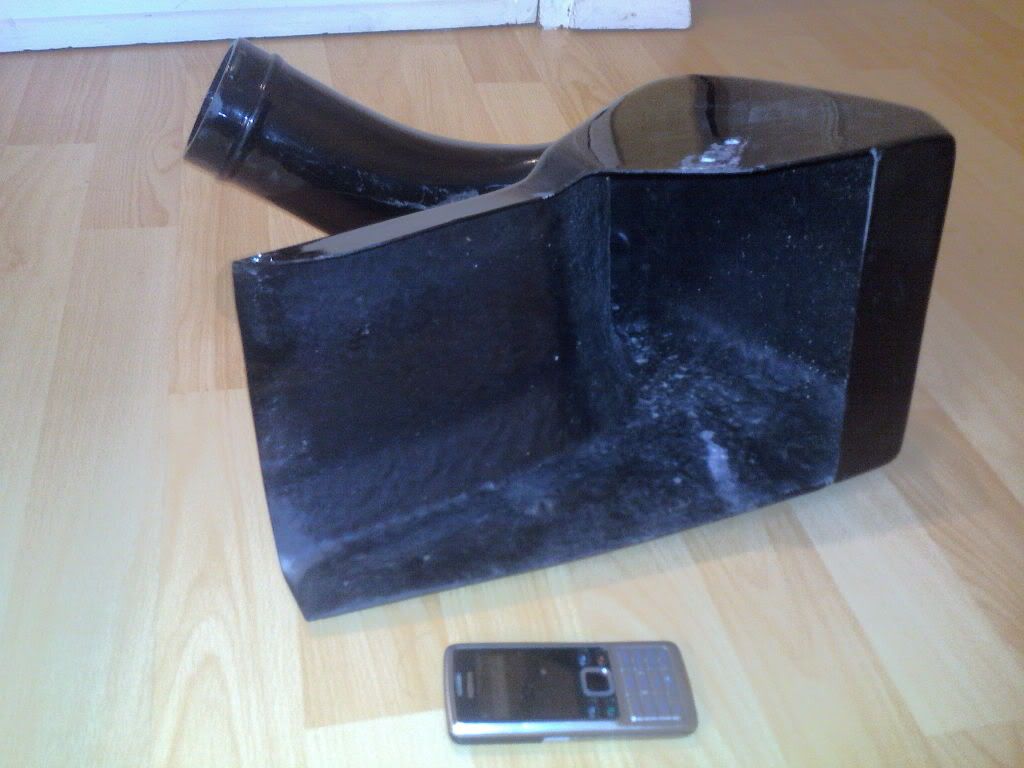

sorry but this is not complex and gets much more(fresh) air


lex:


Nuno, i think Paul was thinking about the Scoop conecting to the original piping!! Not consedering that it would be connected straight to the OEM Box.

Regards
BRM is offline   Reply With Quote Quick reply to this message
Reply

  Civinfo > vendors > TDi North

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Civinfo forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
Your User Name is the name that appears by all your posts on the forum, and so should not be your email address.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in


Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


LinkBacks (?)
LinkBack to this Thread: https://www.civinfo.com/forum/tdi-north/41514-dyno-parts-tested.html
Posted By For Type Date
HONDA TYPE-R Club Benelux :: ChristopheR fn2 OZ ultraleggera's pg 4!! This thread Refback 16th January 2012 19:03
HONDA TYPE-R Club Benelux :: ChristopheR fn2 update aas manifold pg3+ schaalmodel pg4! This thread Refback 10th November 2010 02:33
HONDA TYPE-R Club Benelux :: ChristopheR fn2 update aas manifold pg3 This thread Refback 11th September 2010 18:27

Similar Threads for: Dyno parts tested
Thread Thread Starter Forum Replies Last Post
Mugen intake tested tdi-north TDi North 41 6th June 2010 21:33
My Civic Dyno Tested MattJ10 Type-R 1 3rd August 2009 01:32
FN2 manifold tested at TDi North tdi-north Type-R 87 1st March 2009 20:44
Tested the suspension good and proper.... PhilCarrie General Discussion (8G) 0 25th February 2007 20:49

» Premium Vendor Showcase
» Recent Discussions
BMW Drivers
18th November 2019 19:51
by Das
Last post by nturnb
Yesterday 22:24
17 Replies, 227 Views
Bluespark Tuning Box...
2nd October 2019 13:32
Last post by capthorat
Yesterday 22:22
10 Replies, 360 Views
The "What did you do to...
5th November 2011 20:40
by robbo51
Last post by lightningslow
Yesterday 22:06
2 Replies, 150,267 Views
Count up to 10000 using...
15th April 2016 10:34
by Slinger
Last post by The_b3st
Yesterday 22:00
3 Replies, 76,805 Views
New FN2 owner from...
14th November 2016 14:15
Last post by WeHaveLiftOff
Yesterday 19:48
191 Replies, 10,297 Views
Honda civic type s 2011
Yesterday 15:40
Last post by Bigeck51
Yesterday 18:13
6 Replies, 89 Views
HID kit
18th November 2019 14:37
Last post by M8TJT
Yesterday 17:52
5 Replies, 89 Views
Internet sales (ebay...
1st April 2009 19:28
by maikeru
Last post by KonstantinosM
Yesterday 17:46
3 Replies, 235,022 Views
Grinding when switching...
16th November 2019 17:45
by Sab
Last post by Das
Yesterday 17:29
13 Replies, 256 Views
Honda Civic MK8 Spare...
9th November 2019 20:57
by w1ng
Last post by w1ng
Yesterday 13:14
13 Replies, 306 Views
Powered by vBadvanced CMPS v3.2.3

All times are GMT +1. The time now is 02:59.


Powered by vBulletin®
Copyright ©2000 - 2019, Jelsoft Enterprises Ltd.

vB.Sponsors
vBulletin Security provided by vBSecurity v2.2.2 (Pro) - vBulletin Mods & Addons Copyright © 2019 DragonByte Technologies Ltd.
User Alert System provided by Advanced User Tagging (Pro) - vBulletin Mods & Addons Copyright © 2019 DragonByte Technologies Ltd.
See also Jaginfo Jaguar XF Forum

Hosting by Vidahost
