Hi all,

I just wanted to show some pictures of my modded air box that Relic has kindly shared with us.

Relic has helped me enormously with this sending me photos of where to trim and how to do it basically.

Another massive thankyou to Mick!!!:):):).

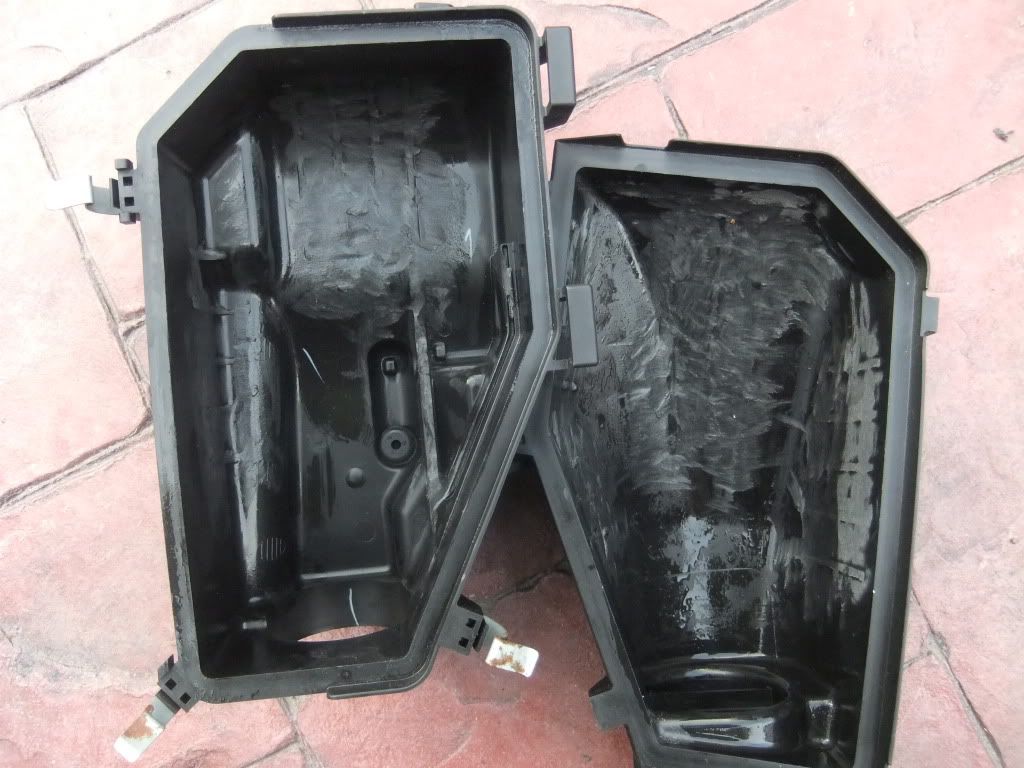

The pictures are during where it shows the fins broken off and then siliconed and then finally taped up.

I am going to put it on on the weekend.

Attachments

See less See more
  • Like
Reactions: 1
1 - 20 of 62 Posts
Wow,that seems to be a very good job mate!
:thumbsup: for being innovative.
  • Like
Reactions: 1
Yeah looks good, any pics of it before, trying to see how much extra flow there is
  • Like
Reactions: 1
2
Yeah looks good, any pics of it before, trying to see how much extra flow there is

Here is a picture of what it looks like before, kindly supplied by Relic.

Attachments

See less See more
Looking good!!!

Any gains to be had here? I know Relic's last work on this was unfruitful.
I did mine on my CTR.


The induction sound is far 'beefier'!
See less See more
Looking good!!!

Any gains to be had here? I know Relic's last work on this was unfruitful.
Look at FMIC better or not thread.

It shows on there the volumetric efficiency. It is 2-3% better at wot and can improve miles per gallon.

I will report back when I put it on, on the weekend.
good work ian!

sent from my phone
  • Like
Reactions: 1
Cheers Lee,

When your leg is better are you going to have a go? It wasn't that bad really, just took a long time.
maybe im concerned slightly that it might be too much air for the map tho

sent from my phone
The ECU should cut boost instead.
Should be the torque limiters keeping the car in check as you should hit these before the boost limiter.
Thats what happens on the honda and tdi map anyway.
Mass airflow remains the same at the same outside air temp/pressure.
MAP drops as less boost is required.
Would there be a benefit to the 1.8?

That is a smart job on the box alot of time and prep!
Cheers Lee,

When your leg is better are you going to have a go? It wasn't that bad really, just took a long time.
I used one of these attached to the drill


Didnt take too long really
See less See more
I thought this thread was in reference to the more recent cosmetic surgery trend that might benefit my Mrs. How wrong was I? :confused:
sorry chip if you get her fixed i wont do it again i promise
  • Like
Reactions: 1
sorry chip if you get her fixed i wont do it again i promise
That's all right, Dezi - but don't tell Lee !!!
Back to topic...............

I am worried about the tape coming off and going into the turbo!!!!:rolleyes::rolleyes::rolleyes:.

However I have a cunning plan.

How about spray over the tape with an enamel based spray paint- I have bought some black halfords enamel paint.

If I give the tape a couple of coats then the paint would adhere to the inperfections and bond the inbetween bits of the tape. I am worried about this as some of the tape is peeling already.

My thinking is that the paint would bond the tape together, giving extra strength, thus stopping the peeling.

There would also be a nice smooth finish for the air flow???


What do you think people???

Would do you think Mick???
See less See more
Yeah do it.

Might end up spraying the inside of mine to. Good idea.
